| Main Processor | Dual-core embedded processor | |
| Operating System | Embedded LINUX | |
| Dahua (NVR) DHI-NVR2104HS-4KS2 4 Channel | ||
| IP Camera Input | 4 | |
| Two-Way Talk | 1 Channel Input, 1 Channel Output, RCA | |
| Display | ||
| Interface | 1 HDMI, 1 VGA | |
| Resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
|
| Decoding Capacity | 1ch@8MP 30fps, 4ch@1080P 30fps | |
| Multi-Screen Display | 4CH: 1/4 8CH: 1/4/8/9 |
|
| OSD | Camera title, Time, Camera lock, Motion detection, Recording | |
| Recording | ||
| Compression | H.265/H.264 | |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc. | |
| Record Rate | 80Mbps | |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel | |
| Record Mode | 80Mbps | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection And Alarm | ||
| Trigger Event | Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips | |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), and Tampering | |
| Alarm Input | N/A | |
| Relay Output | N/A | |
| Playback And Backup | ||
| Sync Playback | 1/4 | |
| Search Mode | Time /Date, MD and Exact Search (accurate to second) | |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Third Party Support | ||
| Third Party Support | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more | |
| Network | ||
| Interface | 1 RJ-45 port (10/100Mbps) | |
| PoE | N/A | |
| Network Function | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip | |
| Optical Fiber Interface | N/A | |
| Maximum User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android | |
| Interoperability | ONVIF 2.4, SDK, CGI | |
| Storage | ||
| Internal HDD | 1 SATA III Port, up to 6TB capacity for each HDD | |
| HDD Mode | Single | |
| eSATA | N/A | |
| Auxiliary Interface | ||
| USB | 2 ports (1 Rear USB2.0, 1 Front USB2.0) | |
| RS232 | N/A | |
| RS485 | N/A | |
| Power | ||
| Power Supply | Single, DC12V/2A | |
| Power Consumption | <3W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa | |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH | |
| Construction | ||
| Dimensions | Compact 1U, 260mm×224.9mm×47.6mm (10.2″ x 8.9″ x 1.9″) | |
| Net Weight | 0.8kg (1.76 lb) (without HDD) | |
| Gross Weight | 1.6kg(3.53 lb)(without HDD) | |

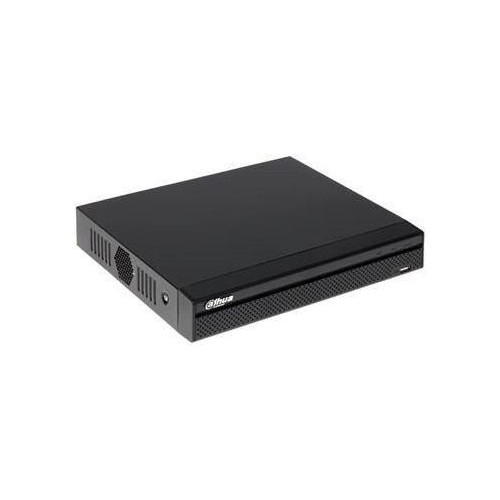

Dahua (NVR) DHI-NVR2104HS-4KS2 4 Channel
৳ 6,300.00
- Model: DHI-NVR2104HS-4KS2
- 4 IP channel max, up to 8MP resolution
- 80Mbps record rate, H.265/H.264
- VGA/HDMI up to 3840×2160 output
- 1 SATA port, up to 6 TB 3.5” HDD
